Premier DAC

Premier DAC

SoundStage AUS
SoundStage! Ultra

"Un prodotto di grandissimo fascino, che oltre a suonare maledettamente bene è costruito come una Ferrari." Audioreview Novembre 2018
" ... signori, si vola." Audiogallery Febbraio 2019

"Detta così sembra il solito strillo promozionale presente in ogni brochure che si rispetti ma, nella realtà e soprattutto nell’esperienza di chi maneggia certi apparecchi, è evidente la consapevolezza di aver toccato con mano qualità assolute." Suono Ottobre 2019

Scheda comparativa DAC MSB Technology

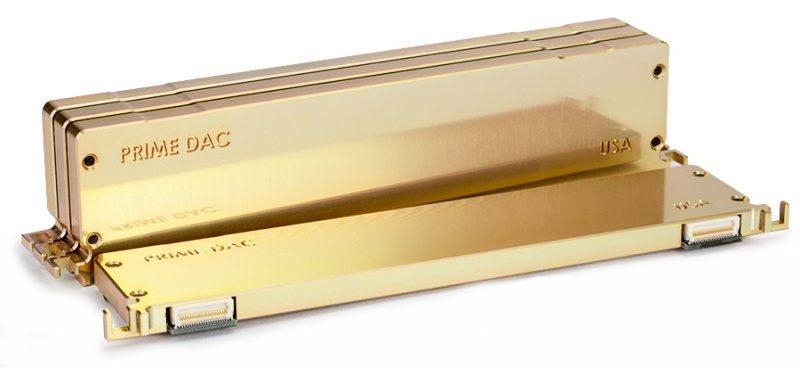

With four prime DACs, we yield an unmatched level of detail, reproducing the musicality, soundstage, and texture of an original performance, bringing the artist to you. A fully balanced, ultra-high precision, discrete ladder DAC architecture ensures each note tells a story. Additionally, MSB’s robust in-house design enables the finest quality playback of PCM and native DSD, while our low impedance circuitry drives your amplification directly without adding coloration or buffering noise. The end result is a digital experience defying expectations.

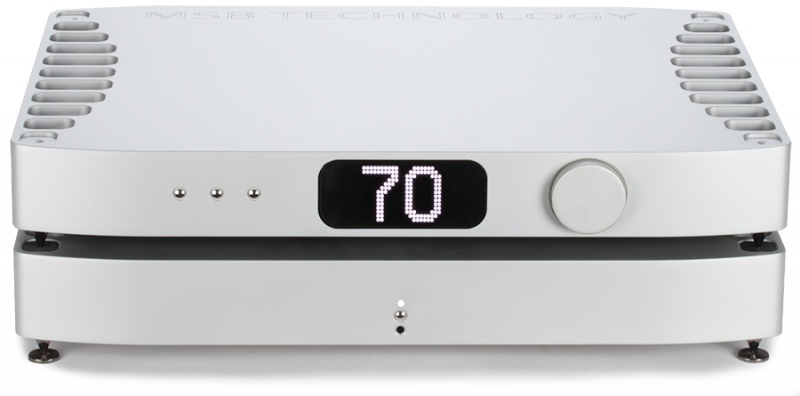

A display for the listening chair

Equipped with high-visibility and a wide viewing angle, the display is both easy-to-read and stunning, exhibiting our love for intuitive features.  The LED display, slaved to the audio clock, is refreshed between data processing to drastically reduce electrical interference. The in-house discrete design is then constructed into its own shielded CNC pocket for optimal isolation. Sit back and be immersed.


Engaging with the Future

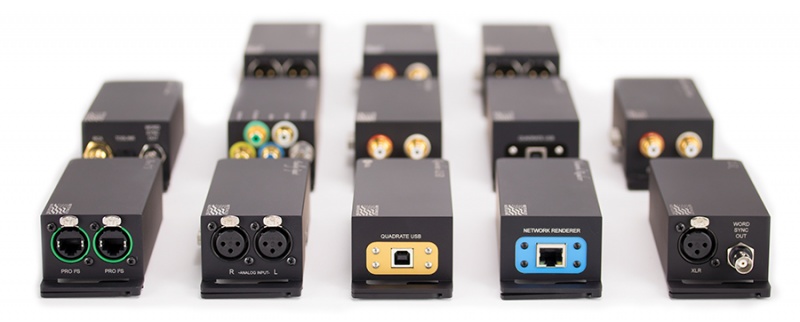

MSB thrives off the innovation required to meet consumer demands. We’re constantly improving digital input modules to stay at the forefront of the high-end audio industry, ensuring you’re always equipped with the most current digital file formats and interfaces. Focusing on our network renderer and USB input, your audio tech will be on the cutting edge. Put simply, your DAC is ready for the future.

Superior streaming

The MSB Renderer was developed using an in-house hardware design running an ultra low noise A5 processor for optimal audio playback performance. Over the air updates will ensure that your renderer always has the latest capabilities and ultimate convenience.

– Up to 32 bit – 768kHz
– MQA decoding
– Roon Endpoint
– Up to 4X DSD
– UPnP Protocol
– DLNA Protocol

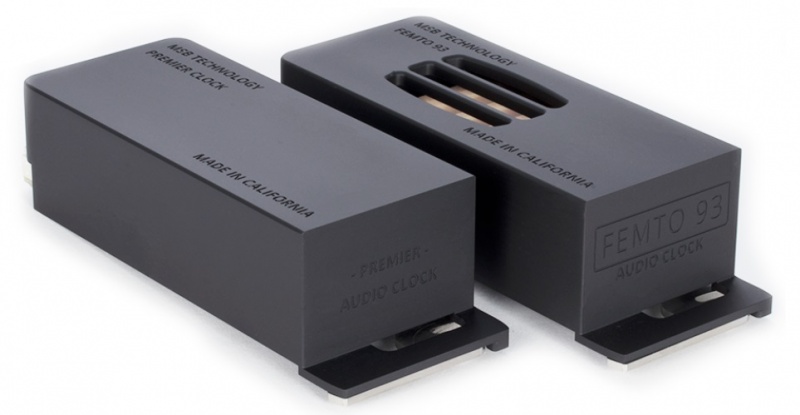

Discrete Clock

Our clock module architecture is built with the customer in mind—we’ve made the discrete clock user-upgradable, ensuring future updates are simple and streamlined. For optimized performance, upgrade to the Femto 93 Clock with thermally-stabilized custom crystals.

Hybrid Volume

The Premier DAC comes equipped a high-performance XLR or optimized RCA output module that’s fully shielded. This user-replaceable module provides a bufferless 150Ω output impedance suitable for driving any amplification. Proprietary advanced hybrid analog/digital volume technology allows for a clean and immersive listening experience you have to hear to fully believe.

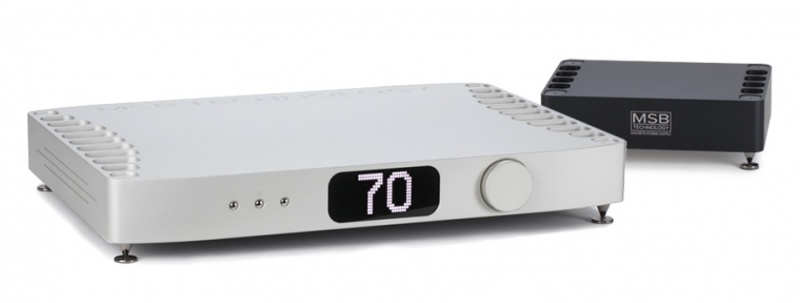

Discrete Power Supply

Superior conversion begins with clean and stable low-noise power. The Discrete Power Supply feeds the DAC with dual low-noise power streams that are linear and independent. That’s not all—the CNC unibody aluminum chassis provides the discrete power supply with optimal thermal performance and an elegant design aesthetic. The DAC comes equipped with a single power supply, but can be augmented with a second discrete power supply to enable optimized power isolation between all major components.

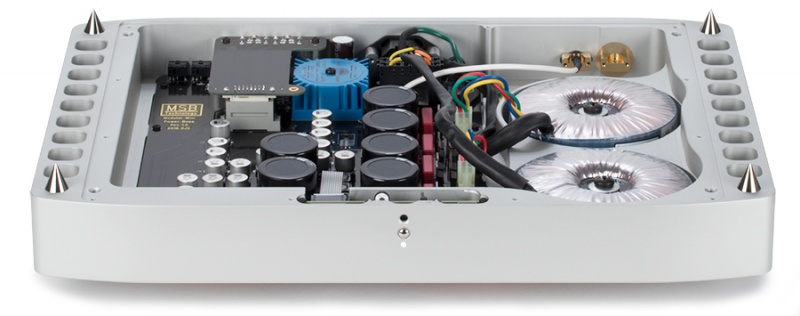

Premier Powerbase

Built to accommodate modular components, the Premier Powerbase is highly adaptive, offering two dual-link power connectors, supplying four isolated power supplies. Make it your own—with the addition of dual low-noise shielded transformers, optimized power filtering, enhanced grounding and high-performance regulators, your DAC will be unrivaled in its performance.

Completely modular

Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

(Premier DAC base configuration shown)

Anodized Finishes

Elegant yet commanding, our finishes are available in a matte silver or matte black anodize. Replaceable foot guards are included to protect the chassis from damage. Any audiophile M6X1 foot can be installed to optimize your system.


Technical Specifications

Supported Formats (Input dependent):
44.1kHz to 3,072kHz PCM up to 32 bits
1xDSD, 2xDSD, 4xDSD, 8xDSD
Supports DSD via DoP on all inputs

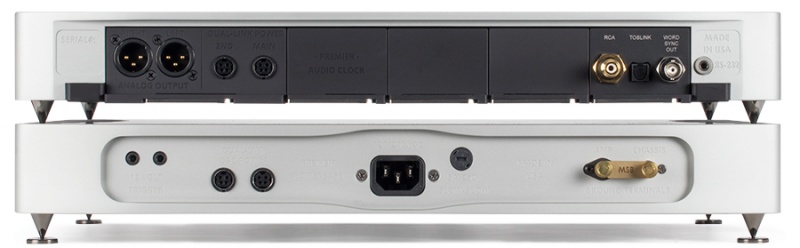

Default digital I/O:
1x RCA Coaxial input
1x Word-Sync output
1x Toslink optical input

Digital Inputs (option):
3x Advanced isolated input module slots from:
Femto 93 module
Pro ISL Module
Quad Rate DSD and MQA USB input module
Renderer input module
Optical and Coaxial input module
XLR Balanced input module
Dual Pro I2S input module

Analog Outputs:
Rca or XLR (3.57Vrms Maximum, 300Ω Balanced, Galvanically isolated)

Volume Control:
1dB steps (Range 0 - 106).
Volume Control can be disabled in the menu.

Discrete LED audio clock synchronous display
Adjustable brightness and auto-off feature

Isolated RS-232
IR Remote
Front panel interface

Chassis dimensions:
Width:    17 in (432 mm)
Depth:    12 in (305 mm)
Chassis Height (Without Feet):    2 in (51 mm)
Stack height:    2.65 in (68 mm)
Weight:    18 lbs (8.2 kg)

Premier DAC Premier DAC Premier DAC Premier DAC Premier DAC Premier DAC
