Descrizione: Preamplifcatore valvolare hi-end a circuitazione completamente bilanciata e zero feedback negativo

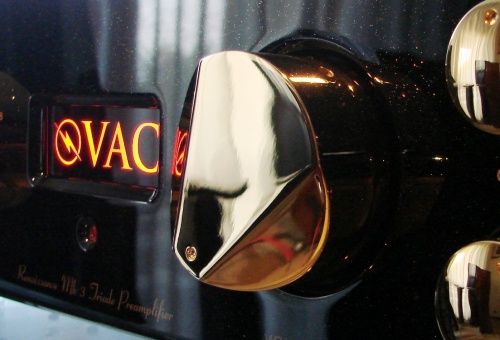

Comandi: Volume, selettore di ingressi, Cinema bypass, mute (il Logo si illumina di rosso quando attivato)
Valvole: Linea: 2x 12AU7, 4x 12AX7
Phono (opz): 3x 12AX7

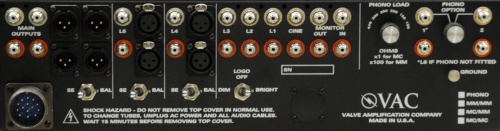

Ingressi: Linea: 5 Rca, 2 XLR, 1 Rca Tape, 1 Cinema bypass
Phono (opz): 1 Rca MM e 1 Rca MC con selezione del carico resistivo per fonorivelatori da 0,2V a 5V
Uscite: 2 Rca, 2 XLR, 1 Rca Tape Record
Guadagno: Linea: 22db
Phono (opz): MM 42db, MC 62db
Note: Telecomando (volume regolato elettromeccanicamente senza l’utilizzo di realys o microprocessori)
Chassis amagnetico in alluminio con frontale da 1cm
Amplificazione tramite triodi in Classe A1 - Alimentatore esterno
Connettori Cardas Rhodium
Manopole frontali placcate oro
Attenuatore di luminosità del logo
Dimensioni (lxaxp): 45,5 x 14 x 39 cm
Peso: 10 kg

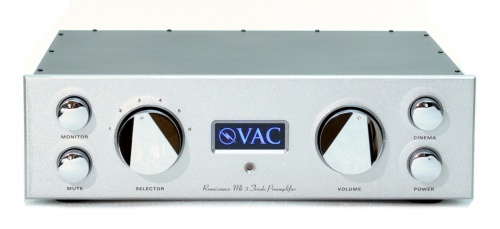

Colore: nero con manopole dorate, argento con manopole cromate

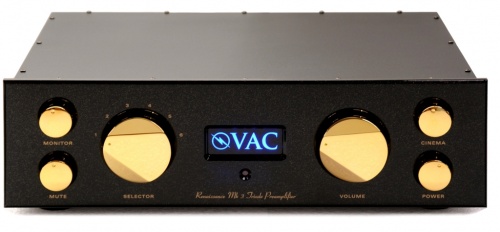

The VAC Renaissance Mk III Preamplifier is a development of the preamplifier section from the highly regarded VAC Phi Beta Integrated amplifier and provides balanced and single-ended input and output capability. It is completely hand wired, and all switching is accomplished via high purity silver contact mechanical switches. The six active circuit elements are twin triode vacuum tubes, biased for Class A1 operation. Connectors are Cardas premium Rhodium type. Remote control of volume and mute is provided; in the mute state, the VAC logo changes from blue to red. Cine Bypass is included for use with volume controlled sources. The heavy power supply is external, with a 6 foot detachable umbilical cable. The optional MM/MC phono stage uses six triode elements with passive RIAA equalization. Variable gain (42/62 dB) and variable resistive loading are provided. Excellent results are obtained with pickups having nominal outputs from 0.2 mv to 5 mv. The standard fascia finish is black lacquer with gold metallic flake over a VAC-machined 10mm aluminum plate. The faceted and domed countersunk aluminum knobs are also machined at VAC and finished in 10 micron gold. Silver with chrome is optional at added cost.
|
